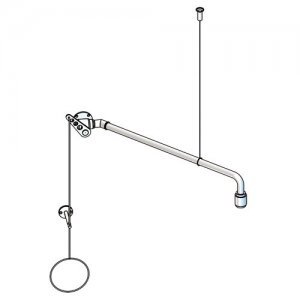

PremiumLine body safety shower with valve, 45°-construction, above door installation, exposed pipework

  • shower arm ¾“ made of stainless steel, polished, projection 800 mm
  • wire rope suspension set for shower arm, mounting on the ceiling, the wires can be cut to required length on location
  • 45° connecting adapter made of stainless steel
  • ball valve ¾“ made of stainless steel on wall flange, with pull rod, optional left or right of the door mountable, DIN-DVGW tested and certificated, water inlet ¾” female
  • pull rod made of steel, polished, length 700 mm
  • holder for pull rod made of stainless steel, polished
  • high-performance shower head made of stainless steel, polished, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • sign for body safety shower according to DIN 4844-2-D and BGV A8, self-adhesive 150 x 150 mm
  • installation height 2 335 mm (+/- 100 mm)
  • according to DIN EN 15154-1:2006
  • according to DIN 12899-3:2009 and ANSI Z358.1-2009
  • DIN-DVGW tested and certificated

Article-No.: BRU086095
